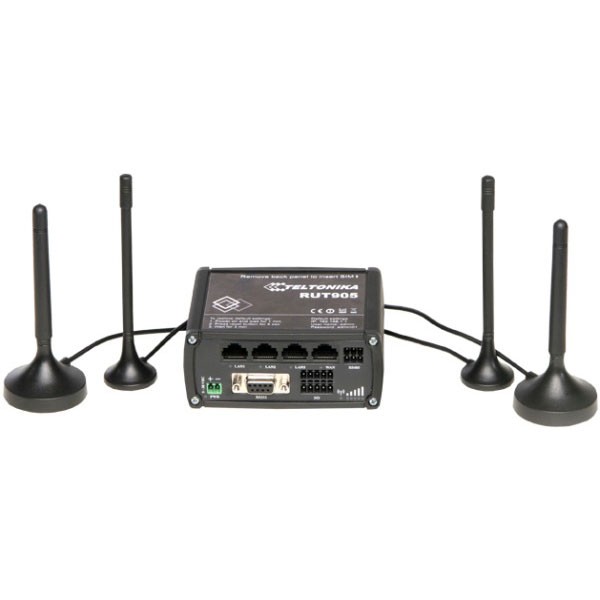

Router 3G Dual-SIM Teltonika RUT905 Hotspot compatibil orice retea

Router 3G Dual-SIM Teltonika RUT905 Hotspot compatibil orice retea

1.055,00 RON
Livrarea incepand cu 12 Ron
Acest produs nu este disponibil in stoc
Comenzi telefonice - 031.438.50.98031.438.50.98, Luni-Sambata,09:00-21:00
Cod produs - SKU: RUT905

Descriere

Router celular industrial 3.5G (HSPA) Teltonika RUT905, cu VPN, cu 2 SIM-uri, cu port RS-232/485, cu 4 porturi Ethernet 10/100Mbps si WiFi IEEE 802.11 b/g/n

3G (21Mbps/5.76Mbps) dual SIM router with WiFi, 4x Ethernet ports, I/O, RS232, RS485

Technology
  • 3GWi-FiEthernetSMS
Hardware
  • RS232RS485I/O connectorDIN Rail mounting
Firmware
  • Backup WANOpenVPNWireless HotspotRMS support
UMTS/HSDPA/HSUPA
Frecvente: 850/900/AWS1700/1900/2100 MHz
HSDPA: 21 Mbps (Cat 14) downlink
HSUPA: 5.76 Mbps (Cat 6) uplink
UMTS: 384 Kbps downlink si uplink

GSM/GPRS/EDGE
Frecvente: 850/900/1800/1900 MHz
Power class 4 (2 W, 33 dBm) GSM/GPRS 850/900 MHz
Power class 1 (1 W, 30 dBm) GSM/GPRS 1800/1900 MHz
Power class E2 (0.5 W, 27 dBm) EDGE 850/900 MHz
Power class E2 (0.4 W, 26 dBm) EDGE 1800/1900 MHz
GSM: 14.4 kbps DL, 14.4 kbps UL
GPRS: 107 kbps DL, 85.6 kbps UL (class 33)
EDGE: 296 kbps DL, 236.8 kbps UL (class 33)

Ethernet
Standarde: IEEE 802.3, IEEE 802.3u
Porturi: 3 x LAN 10/100 Mbps, 1 x WAN 10/100 Mbps
Suporta auto MDI/MDIX

WiFi
Standarde: IEEE 802.11b/g/n
2x2 MIMO
Moduri de functionare: AP si STA simultan
Securitate: 64/128-bit WEP, WPA, WPA2, WPA&WPA2
Frecvente: 2.401 – 2.495 GHz
Putere: 20 dBm max TX
SSID stealth mode si control al accesului pe baza adresei MAC

Hardware
CPU 560 MHz cu memorie DDR2 128 Mbytes
Alimentare cu conector jack sau bloc terminal cu 2 pini (optional)
Adaptor atasabil pentru montare pe sina DIN (optional)
Bloc terminal cu 4 pini pentru portul RS-485 (2 sau 4 fire)
Mufa DB9 pentru portul RS-232
Port USB 2.0
Buton Reset/Restore to default
Conectori pentru antene: 2 x SMA pentru 3G, 2 x RP-SMA pentru WiFi
LED-uri: 4 x Ethernet , 1 x Power , 1 x status conexiune , 5 x putere conexiune
Bloc terminal cu 10 pini pentru iesiri / intrari:
0 - 3 V intrare digitala
0 - 30 V intrare digitala  izolata galvanic
0 - 24 V intrare analogica
30 V, 250 mA iesire digitala open collector
40 V, 4A iesire pe releu SPST

Software
OpenVPN, IPsec, GRE, L2TP, PPTP
Backup WAN
PPPoE
Dynamic DNS
SMS si ping reboot, periodic reboot
Status, configuration via SMS
Send/read SMS via HTTP POST/GET
Monitorizare prin SNMP, SNMP trap
System log
VRRP
Web filter
Wireless hotspot cu sau fara server RADIUS
SIM card switch controlled by signal, data limit, roaming
RS232/485 serial console
RS232/485 over IP
Triggere de intrare pentru SMS, e-mail, SIM card, profile, WiFi, reboot, output
Configuration profiles
Dual image with safemode firmware
Firmware update from bootloader via WebUI
Restore point

Caracteristici Electrice, Mecanice si de Mediu
Dimensiuni (H x W x D): 80 mm x 106 mm x 46 mm
Greutate: 280 g
Alimentare: 9 – 30 VDC
Consum: maxim 7 W
Temperatura de functionare: -40 °C to 75 °C
Temperatura de depozitare: -45 °C to 80 °C
Umiditate functionare: 10 % to 90 % non-condensing
Umiditate depozitare: 5 % to 95 % non-condensing
  • HSDPA 21 Mbps DL and 5.76 Mbps UL
  • IEEE 802.11b/g/n WiFi with 2×2 MIMO up to 300 Mbps
  • OpenVPN, PPTP, L2TP, IPsec, VRRP, GRE Tunnel
  • SMS Control, WiFi Hotspot, Mobile on Demand, Backup WAN
  • Input Triggers, Samba Share
  • Four Ethernet ports
  • 3 x input, 2 x output ports
  • MicroSD card slot
  • 4 pin industrial socket for 2/4 wire RS485
  • DB9 socket for full-featured RS232
  • USB type-A socket for external devices
  • Durable aluminum housing
  • External antennas
  • Dual SIM
  • Dual FW imag

RUT905 Schema

RUT905 Package

Standard package contains

  • Router RUT905.
  • Euro PSU.
  • 2 x 3G antennas (magnetic mount, SMA male, 3 m cable).
  • 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable).
  • Ethernet cable (1.5 m).
  • DIN rail mounting kit.
  • RS485 connector block.
  • I/O connector block.
  • QSG (Quick Start Guide).
  • Packaging box.
