Descriere

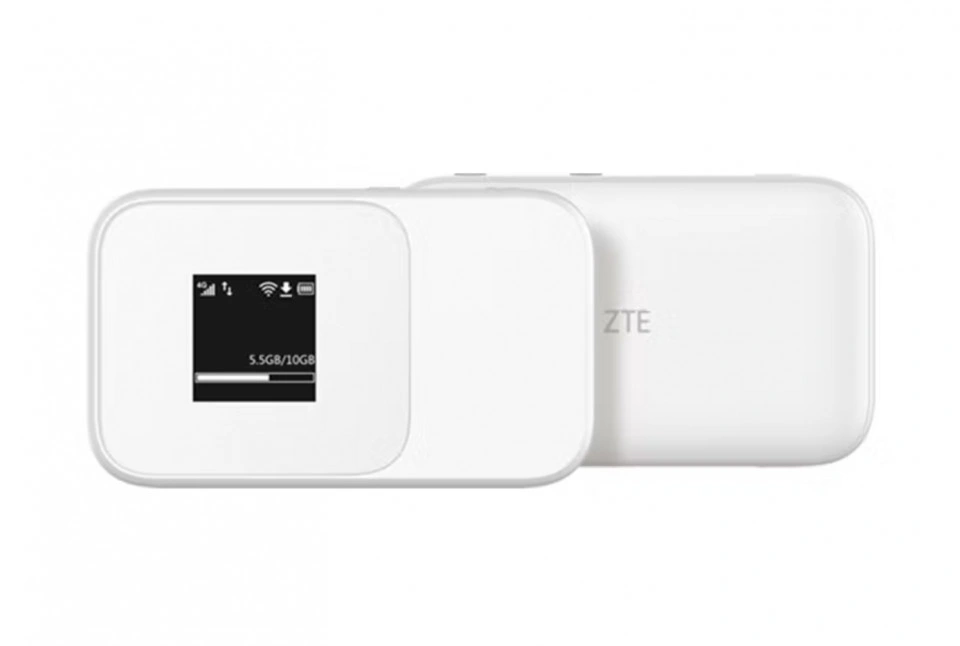

Router Mobile Wi-Fi Modem MF986D 600Mbps decodat, compatibil cu Digi,Telekom, Cosmote, Vodafone, Orange, Zapp, Idlis LTE,2K Telecom LTE 3G 4G
Feature | Description | Support | Remarks | |
Artwork | Dimensions | 107*63*15.5mm | Yes | |
Weight | 128.3g | Yes | TBD | |
Picture | Yes | |||
Form factor | uFi | Yes | ||
User manual | Optional | |||
Quick guide | Yes | |||
Warranty cards | Optional | |||
Battery | 3000mAh, removable | Yes | ||
AC adapter | Yes | |||
Network cable | No | |||
EAN | Yes | |||
TAC | Yes | |||
Solution | Wireless chipset supplier | Qualcomm | Yes | |
Routing and WiFi chipset supplier | Qualcomm | Yes | ||
Wireless chipset model | SDX12-0 | Yes | ||
Wireless processor info | Arm Cortex-A7 up to 1.28 GHz | Yes | ||
Routing and WiFi chipset model | QCA6174A | Yes | ||
USIM/SIM slot | Standard 6PIN SIM card interface 3V SIM card and 1.8V SIM card |
Yes | 4FF | |
Memory(SDRAM/NAND) | 4Gbits Nand+2Gbits LPDDR2 | Yes | ||
MICRO SD slot | No | |||
USB interface | 1 | Yes | TypeC 3.0 | |
RJ45 interface | No | |||
RJ11 interface | No | |||
WiFi users access | 32 | Yes | ||
Working time | 8h | Yes | ||
Maximum power consumption | 6W | Yes | 4V/1.5A(When battery voltage is 4.0V,maximum consumption is1500mA) | |
LCD | Type: TFT Size: 1.44 inch Resolution: 128*128 |
Yes | ||
Power indication LED | No | |||
WIFI indication LED | No | shows on LCD | ||
Network mode indication LED | No | shows on LCD | ||
WAN signal strength indication LED | No | shows on LCD | ||
Ethernet signal strength indication LED | No | shows on LCD | ||
RF | Chipset | SDR660-0 | ||
Main antenna | Internal antenna and External antenna interface | Yes | External antenna interfaces are for main antenna. | |
GSM band | 850/900/1800/1900MHz | Yes | ||
UMTS band | B1/8 | Yes | ||
LTE band | LTE B1/3/7/8/20/28/32/38/40 | Yes | Not support 4MIMO. | |
LTE CA | Yes | Refer to |
||
transmitter power for wireless | LTE: +23dBm (Power Class 3) B42,43:22dBm WCDMA: +23dBm (Power Class 3) GSM/GPRS 850MHz/900MHz: +32dBm (Power Class 4) GSM/GPRS 1800MHz/1900MHz: +29.5dBm (Power Class 1) EDGE 850MHz/900MHz: +26.5dBm (Power Class E2) EDGE 1800MHz/1900MHz: +25.5dBm (Power Class E2) |
Yes | ||
WiFi band | 2.4G & 5G | Yes | not support simutaneously. | |
MIMO for WiFi | 2*2 MIMO for both 2.4G&5G | Yes | ||
MU-MIMO | Yes | Support when the device works as a station. | ||
Max. transmitter power for WiFi | 11a: 16dBm 11b : 17dBm 11g : 15dBm 11n : 14dBm 11ac: 13dBm |
Yes | ||
Technical standard | HSDPA/HSUPA/HSPA+/LTE | HSDPA: DL 14.4Mb/s(Category 10) DL 21Mb/s(Category 14) DL 42Mb/s(Category 24) HSUPA: UL 2Mb/s(Category 5) UL 5.76Mb/s(Category 6) LTE FDD(Category 12): DL 600Mbps (DL 3CA, 256QAM ) UL 150Mbps (UL 2CA, 64QAM) LTE TDD(Category 12): DL 430Mbps (DL 3CA, 256QAM ) UL 30Mbps (UL 2CA, 64QAM) The above rates are all theoretical rates. |
Yes | LTE TDD Config2, SSF config of 7 |
3GPP release | LTE Rel 12, WCDMA Rel ‘99 plus Rel 5 HSDPA, Rel 6 HSUPA, Rel 7 HSPA+, Rel 8 DC-HSPA+ | Yes | ||
WiFi standard | 802.11 a/b/g/n/ac | Yes | ||
WiFi Band | 2.4G: 20MHz/40MHz 5G: 20MHz/40MHz/80MHz |
Yes | ||
WiFi Speed | 2.4GHz 2MIMO 300Mbps 5GHz 2MIMO 866Gbps |
Yes | The totoal spped can up to 1166Mbps.This is theoretical speed | |
WiFi security | OPEN, WPA-PSK/WPA2-PSK, WPA2-PSK, WPA2-PSK/WPA3-PSK, WPA3-PSK | Yes | ||
WPS | PBC(Push Button Config) & station PIN | Yes | ||
IP protocols | RFC 791 (IP) | Yes | ||
RFC 793 (TCP) | Yes | |||
RFC 768 (UDP) | Yes | |||
RFC 792 (ICMP) | Yes | |||
RFC 826 (ARP) | Yes | |||
RFC 1661 (PPP) | Yes | |||
RFC 1332 (IPCP) | Yes | |||
RFC 1334 (PAP) | Yes | |||
RFC 1994 (CHAP) | Yes | |||
NAT/NAPT | RFC 3022 | Yes | ||
Browser | IE | Yes | ||
Firefox | Yes | |||
Safari | Yes | |||
Opera | Yes | |||
Chrome | Yes | |||
ZTE Link | Android and iOS APP to management the device. | Yes | ||
Router | Port forwarding | Yes | ||
IP filter | Yes | IP/MAC/Port/URL filter | ||
DMZ | Yes | |||
UPnP | Yes | |||
VPN passthrough | PP2P/L2TP/IPSec | Yes | ||
VPN Client | No | |||
Voice | No | |||
Fax | No | |||
SMS | Yes | |||
MMS | No | |||
Phonebook | Yes | |||
Network lock | No | |||
IPv4/IPv6 | Yes | |||
Language | English default | Yes | ||
Firewall switch | Enable/Disable IP/MAC/Port filter | Yes | ||
TR069 | No | |||
Online update | FOTA | Yes | ||
HW buttons &switches | Power button | Yes | ||
Function button | The function button is used for menu operations on the screen. | Yes | ||
Reset button | To restore factory default configurations after pressing for 3 seconds | Yes | ||
Approvals &Certification | CE | Yes | ||
ROHS | Yes | |||
WEEE | Yes | |||
GCF | No | |||
FCC | No | |||
WiFi certification | Yes | |||
PTCRB | No | |||
REACH | Yes | |||
Operating temperature | 0 to 35° C | Yes | ||
Storage temperature | -20 to 45° C | Yes | ||
Humidity | 5% to 95% | Yes |
Acest modem este compatibil 100% cu reteaua DIGI 4G
Detalii produs
Cod produs - SKU
mf986d
